Auto-digitizing calls

AutoDigitizing is a paid feature not included in standard API plans. It converts an image → EMB → TrueView PNG / machine file. It uses specific API calls. It is charged per call because these requests are resource-intensive. Usage can be tracked in your API Dashboard → Stats → Hits.

---

What is AutoDigitizing?

In the EWA API, AutoDigitizing means converting an image into an embroidery design:

1. You upload an image (bitmap or vector).
2. The Wilcom Embroidery Engine processes it and generates an EMB file, Wilcom’s native design format.
3. From this EMB file, the system can produce:

1. A TrueView PNG image, and/or
2. A machine file – e.g. DST


So AutoDigitizing is a two-step process: image → EMB → output files.

---

Types of AutoDigitizing calls

There are two main categories:

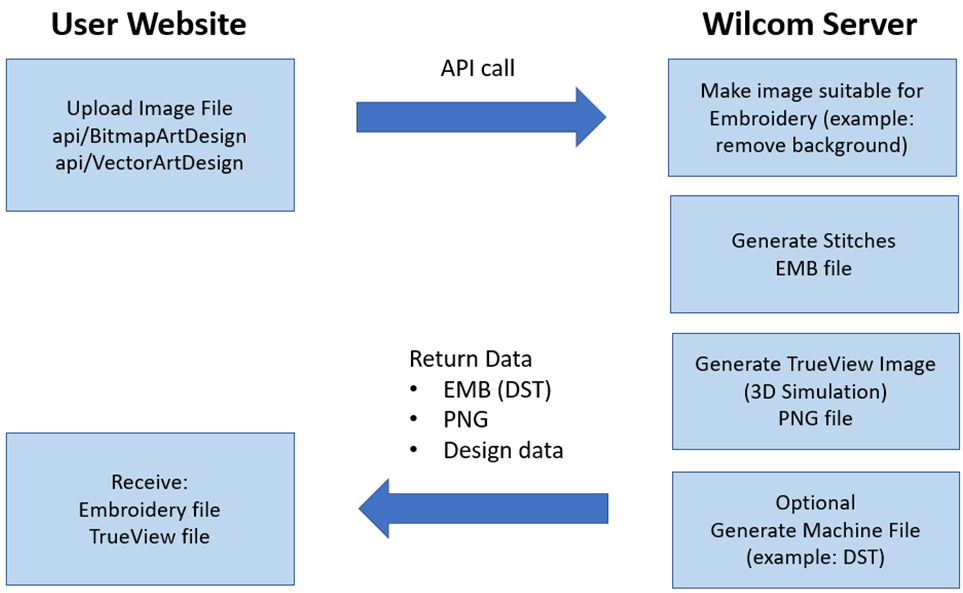

Generate embroidery designs from artwork

1. api/bitmapArtDesign
2. api/vectorArtDesign

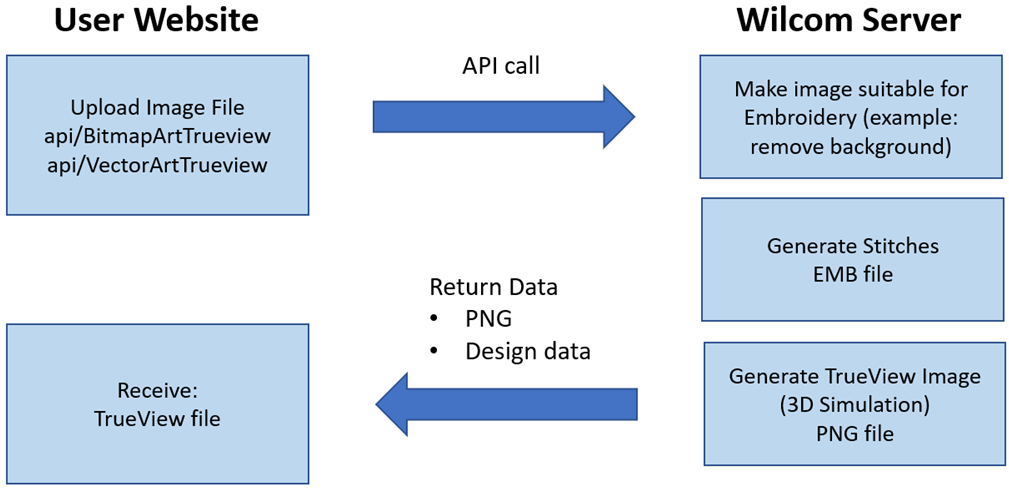

Generate TrueViews from artwork

1. api/bitmapArtTrueview
2. api/vectorArtTrueview


---

Why not in standard plans?

AutoDigitizing is resource-intensive.

1. Processing images into embroidery designs places a heavy load on the API server.

2. Workload increases with the size and complexity of the image.
3. Because of this, AutoDigitizing is charged per call, not bundled into standard subscription plans.

---

How to check AutoDigitizing usage

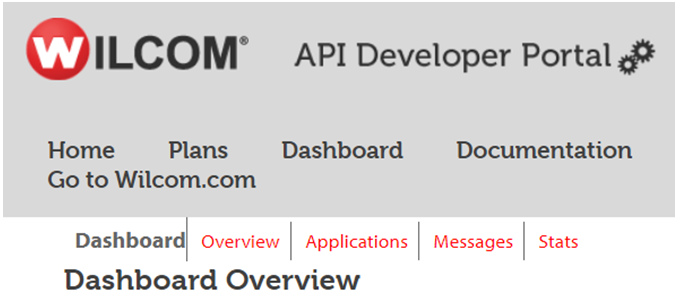

1. Log into your API account and go to the Dashboard.


2. Select Stats → see total number of API calls.
3. Choose a time period – e.g. 'last 30 days'.

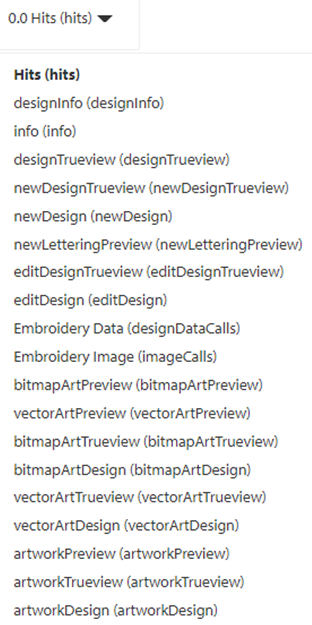

4. Click Hits to view all API call types.
5. If your account includes AutoDigitizing, you’ll see them listed at the bottom.


6. Select a call type to see detailed usage – frequency, peaks, quiet periods, etc.



For more information, contact support@wilcom.com

---

Related topics

1. Understanding auto-digitizing

2. Generate embroidery design for bitmap artwork

3. Generate embroidery design for vector artwork

4. Generate TrueView for bitmap artwork

5. Generate TrueView for vector artwork

6. Reporting auto-digitizing problems
