Auto-Recovery dialogue box keeps on prompting when opening Embroidery Studio e4.5

Auto-Recovery dialogue box keeps on prompting when opening Embroidery Studio e4.5

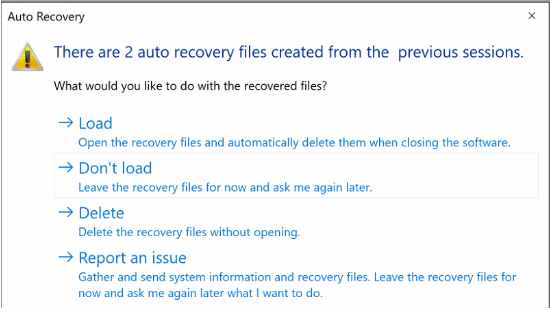

Auto-Recovery Dialogue Box





With this Auto Recovery dialog box, it pops up when you restart Embroidery Studio e4.5 software after an abnormal shutting down of the software.



When you restart Embroidery Studio e4.5, it pops up this Auto Recovery dialog box.



If you choose "Load", it will open those auto saved design file(s) for you. In some case, the recovery design file is corrupted, and it can cause software crash again. Then you must select "Don't load", or "Delete".

If you choose "Don't load", the recovery design file(s) will still kept in "Recover" folder under Hatch software installation folder.

If you choose "Delete", the recovery design file(s) will be deleted from your PC.

I would like suggest you choose "Don't load" if you do not wish to open the auto saved design file(s), or "Load", if you wish to open the auto saved design file(s).



SOLUTION :  Purge Recovery  and Revert



STEPS :


1) If your PC is connected to an embroidery machine, please write down the machine setting parameters.
2) Click on the "Start" button of Windows and go to All Programs > EmbroideryStudio e4.5
3) Click on the "Purge Recover" menu
4) Click on the "OK" button in Purge Recover dialog box
5) Click on the "Revert" menu
6) In Revert dialog box, tick the checkbox for "Defaults" and click on the "OK" button

Note: You need to start up the ES e4.5 software and re-configure the embroidery machine according to the machine setting parameters that you wrote down in step 1).
