ES crashing when launching CorelDRAW on a second monitor

ES crashing when launching CorelDRAW on a second monitor

Problem:
Wilcom EmbroideryStudio crashes when switching to CorelDRAW on a second monitor (non-primary)

Solution:
Please follow the steps accordingly:

  1. Start ES on your primary monitor
  2. Right-click on the toolbar icon, then mouseover  "Wilcom EmbroideryStudio Digital Edition" and click Properties:

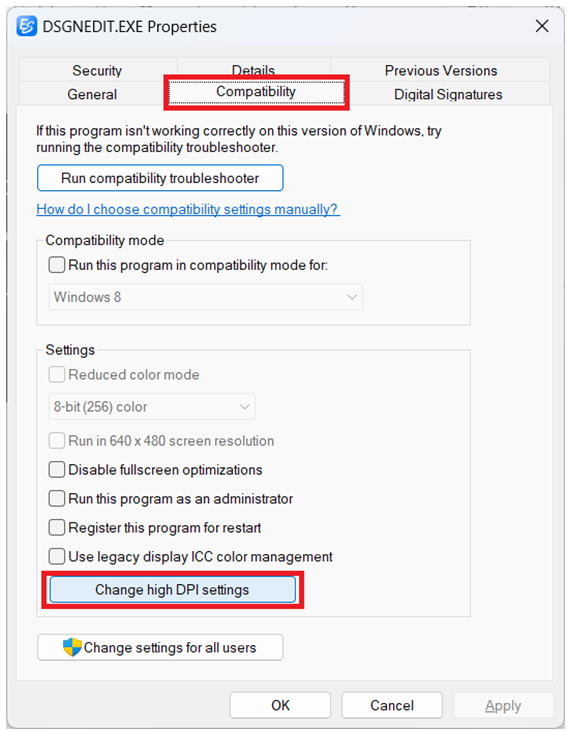

        3.  Select Compatibility tab, then select 'Change high DPI settings'

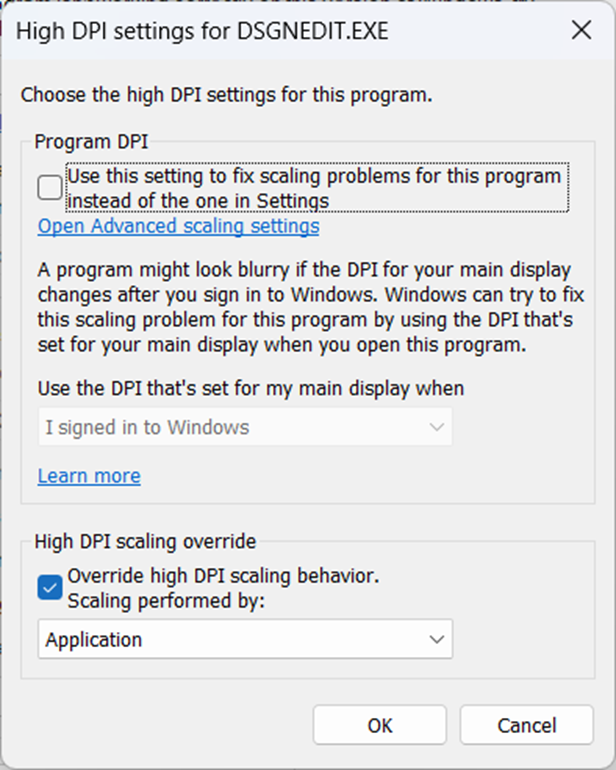

4. Check "Override high DPI scaling behavior. Scaling performed by: Application"




5. Click OK, then OK again
6.  Restart ES
