How to convert designs to EMB file format
Wilcom Workspace has the capability to convert designs to EMB file format.
Follow the steps below on how to convert your design to EMB file format.
Open the design you wish to convert.

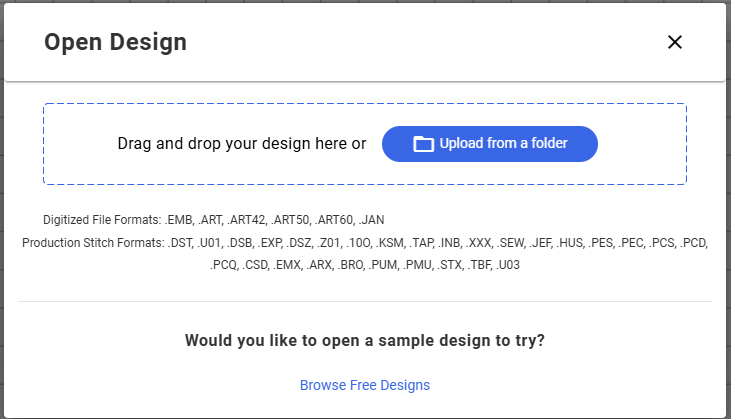

You may drag and drop the design or click Upload from a folder.
Click Convert design to stitch format icon

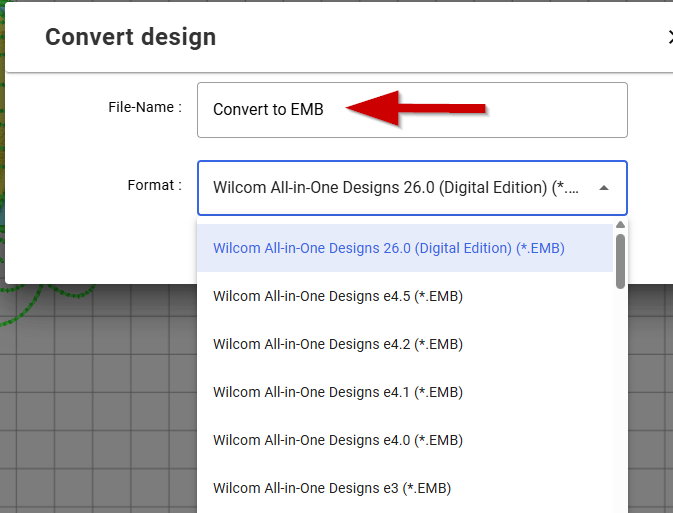

Type your preferred name for the design.
Click the drop drown list arrow key and select your preferred EMB file format from the Format.

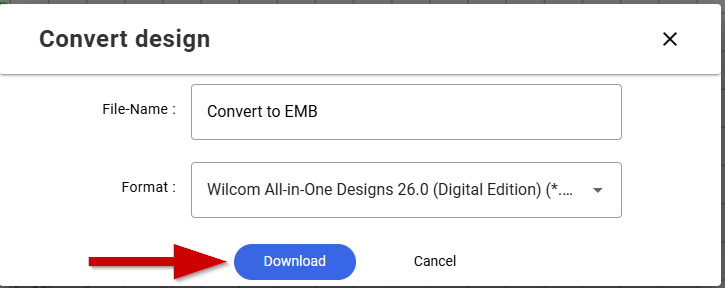

Click Download Button

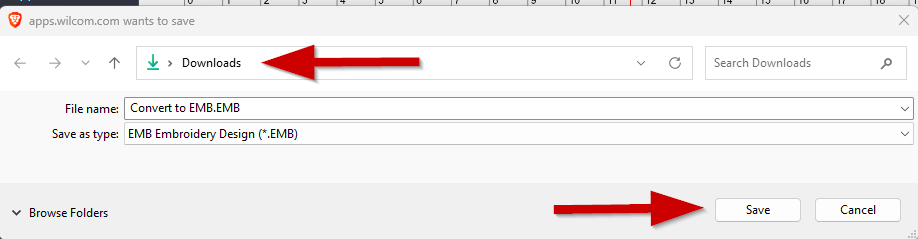

Select the directory you wish to save your machine/stitch file.
Click Save button
