Measurements

Measurements

WilcomWorkspace provides a set of grid lines to help accurately align or size embroidery designs. Rulers are located to the top and left side of the workspace as required.

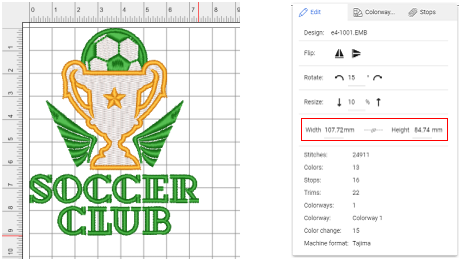

Grid lines

Use grid lines to accurately align or size embroidery designs. Default grid spacing is 10mm x 10mm. The red lines on the rulers give you the precise design dimensions. These are also indicated in the toolbox Edit tab.

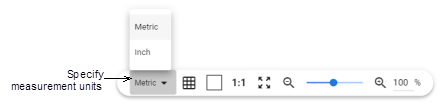

Measurement units

The measurement system will default to whatever the operating system is using. You can switch measurement units without having to exit and change system settings.
