Open & edit in Truesizer

Open & edit in Truesizer

The Open in Truesizer feature allows you to edit designs stored in Library using Truesizer tools. This enables you to modify designs and prepare them for production while maintaining a connection to the library.

Open a design in Truesizer

To edit a design:

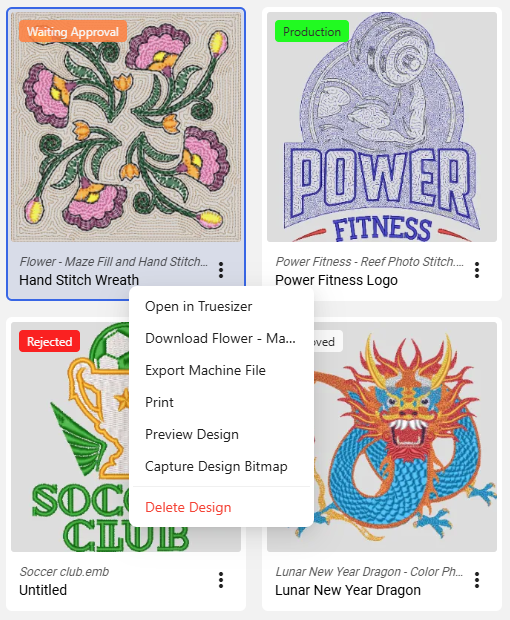

  1. Select a design in My Designs.

  2. Click the browse button below the design and select Open in Truesizer from the droplist. The design opens in Truesizer, where you can begin editing.

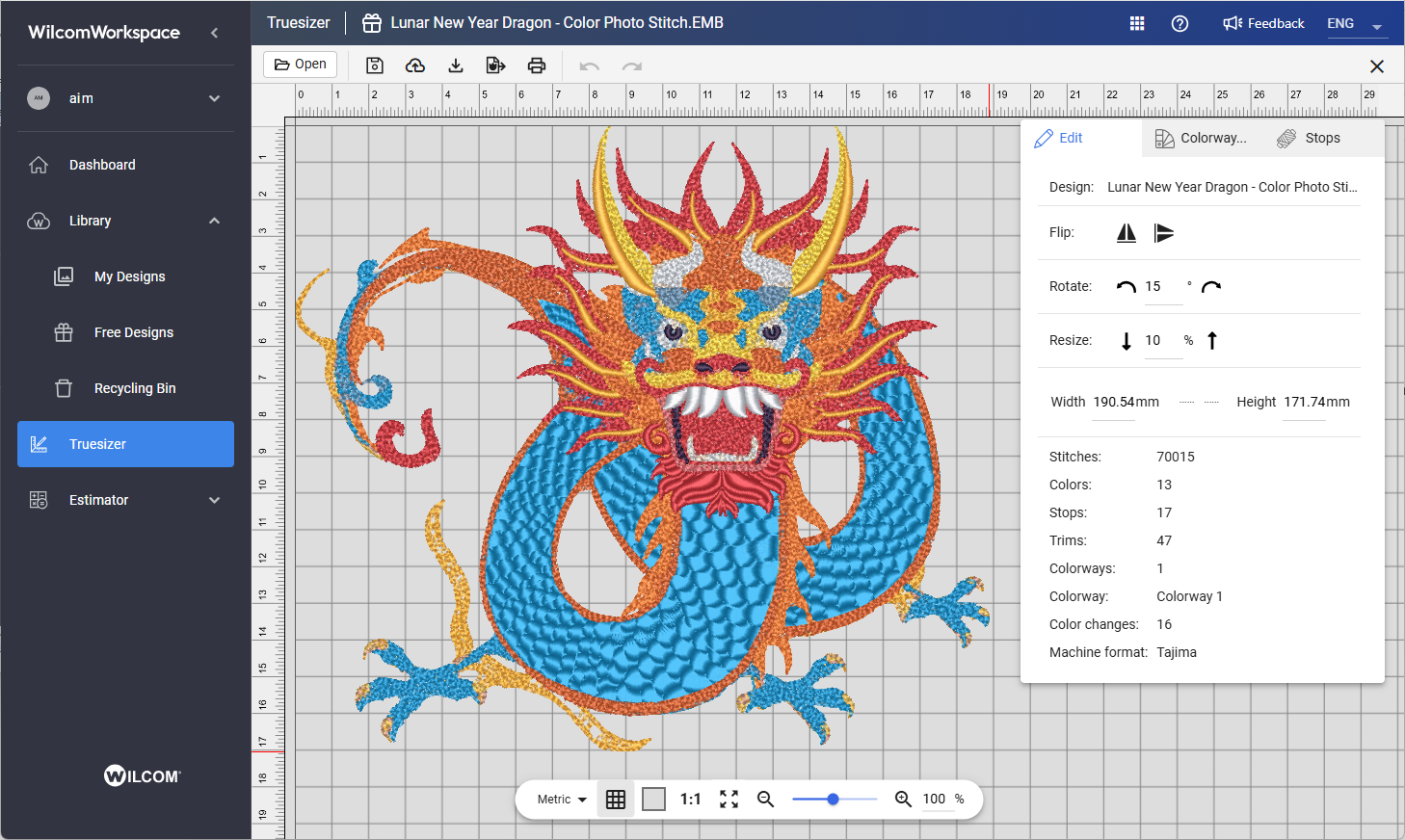

Edit a design in Truesizer

You can edit designs using Truesizer tools such as:
  1. resizing
  2. rotating and flipping
  3. modifying colorways
  4. adjusting design properties
When a design is opened in Truesizer:
  1. The design is temporarily locked.
  2. Other users can still view the design in Library.
  3. Other users cannot open the design for editing.
When you finish editing, close the design in Truesizer. This ends the editing session and releases the design lock, allowing other users to edit the design.
  1. Save to Library
  2. View design information
  3. Browse designs
  4. Download & export files
