Designs can be uploaded to Wilcom Library directly from Truesizer, allowing you to save edited or newly created designs to your organization’s Library without leaving the editing environment. Uploading from Truesizer creates a design record in Library that stores the design file together with its metadata and technical properties. This makes it easy to move designs from editing into the shared Library so they can be organized, searched, and reused by your team.
Upload from Truesizer
Open a design in Truesizer
Open an existing design or create a new design in Truesizer. You can:
- Open a design from your computer.
- Open a design from Library.
- Create a new design.
Before uploading, review the design to ensure it is ready to be stored in Library. You may want to:
- Check design size and placement
- Review colors and colorways
- Make any required edits
Upload a design to Library from Truesizer
To upload the design:

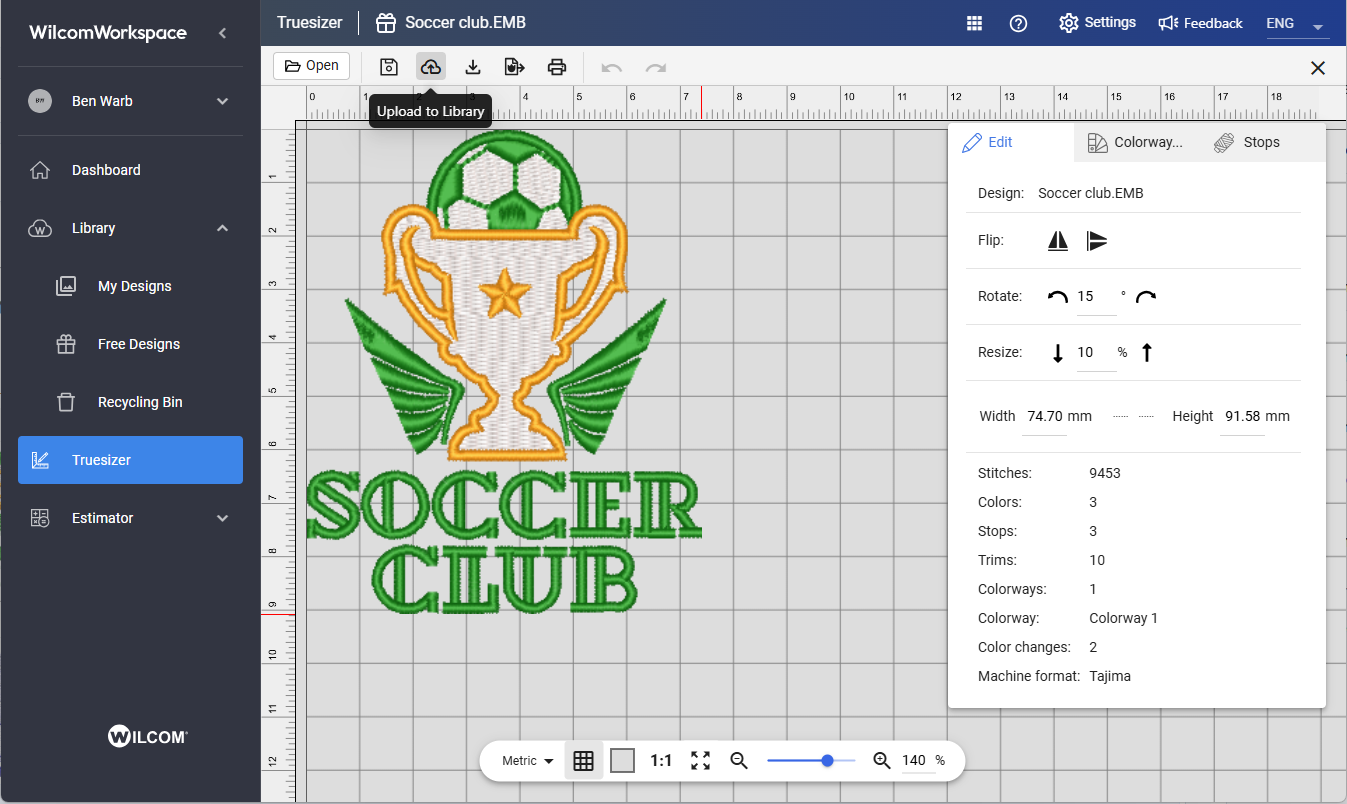

- In Truesizer, select the 'Upload to Library' option.

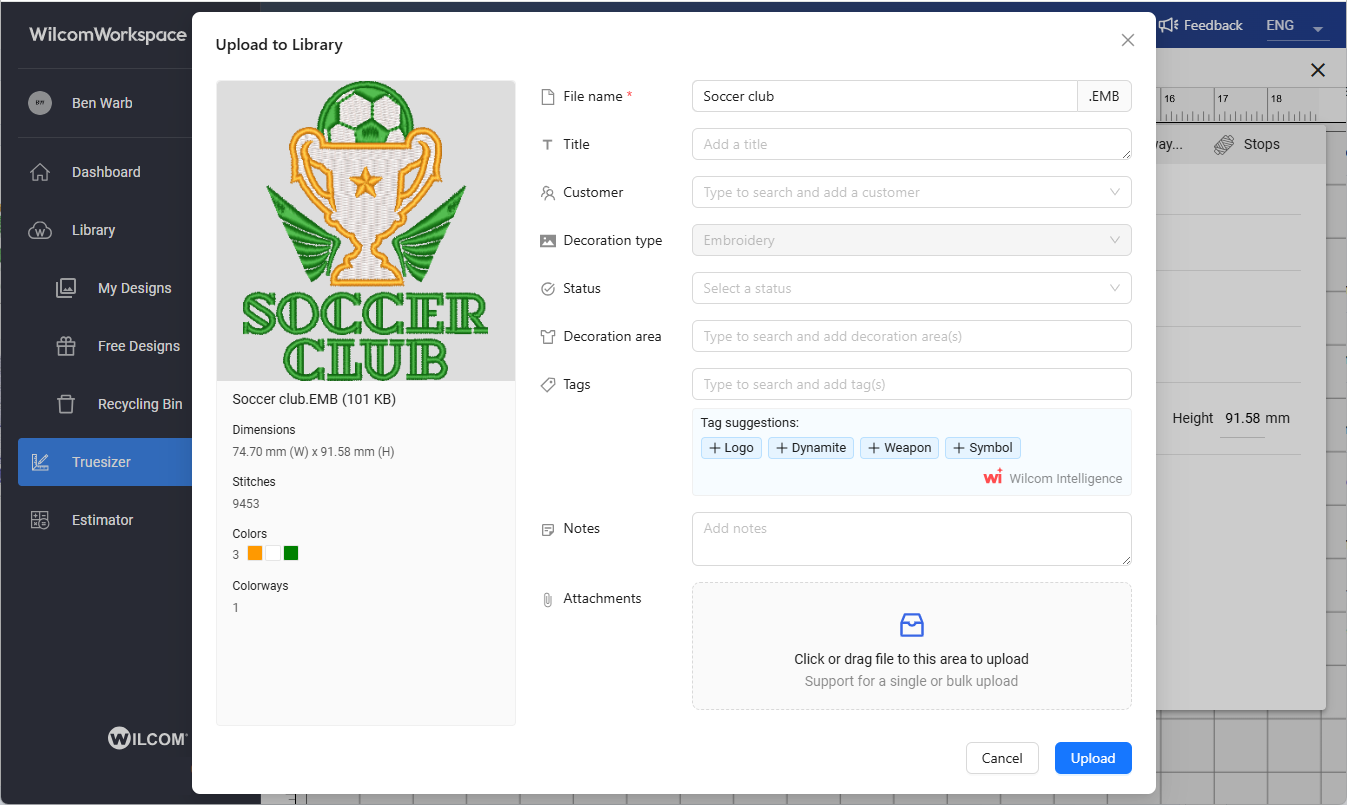

The Upload to Library dialog will open. - Enter metadata to organize the design in Library. See below table.
- Add attachments as required.
- Review design details.
- Click Upload. The design is saved to My Designs in Library and becomes available to other users.
Metadata
Select a field to edit its value. You can update:
| Field | Details |
| Title and description | A clear name and description that help identify the design and understand its purpose. |
| Customer | The client associated with the design, used to organize and locate designs for specific customers. |
| Status | The current stage of the design in your workflow, such as 'requested', 'in progress', or 'approved'. |
| Decoration area | The location on the garment or product where the design will be applied. |
| Tags | Keywords used to categorize the design and make it easier to search and filter. |
| Notes | Additional information or instructions related to the design, such as production details or comments. |
A design record is created with metadata and technical properties. The design can be searched, edited, and used for production.
Notes
- Uploading from Truesizer is useful when you have:
- edited an existing design
- created a new design
- updated colorways or layout
- Filenames must be unique within Library. If a duplicate filename is detected, Library automatically renames the file.
- Some design formats cannot be saved back to Library in their original format. When uploading certain file types, such as ART or other supported formats, Truesizer will prompt you to save the design as an .EMB file. This ensures compatibility with Library and allows full editing support.
