Print production worksheets

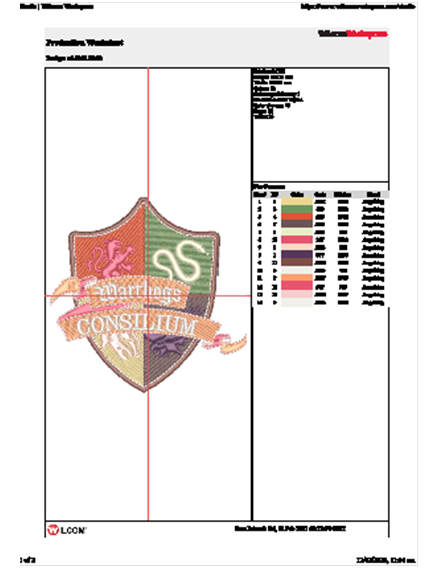

WilcomWorkspace allows you to print production worksheets. This is the link between designer and embroidery machine operator. It contains a design preview as well as essential production information, including design size, color sequence and special instructions. Reports can be output as hard copy or in electronic (PDF) format.
Alert
If certain thread colors are not available on your printer, they may be mapped to a different color, including white. Print the design in TrueView color, or black and white, or turn off color mapping. See your printer manual for more information.

To print a production worksheet...

  1. Before printing, it’s a good idea to check design information to make sure all details are up-to-date.

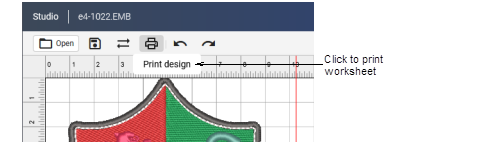

  2. Click the Print design icon.

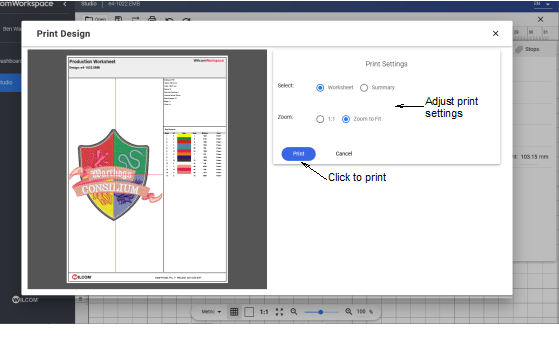

  3. From the preview window, adjust print settings as required.

    Options include:
    1. Report type: Choose between the full worksheet or production summary. The full worksheet provides thread details. The summary includes any colorways.
    2. Zoom factor: Print at ‘real size’ (1:1) or adjust to fit the worksheet.
  4. Click Print to go ahead and print the worksheet.

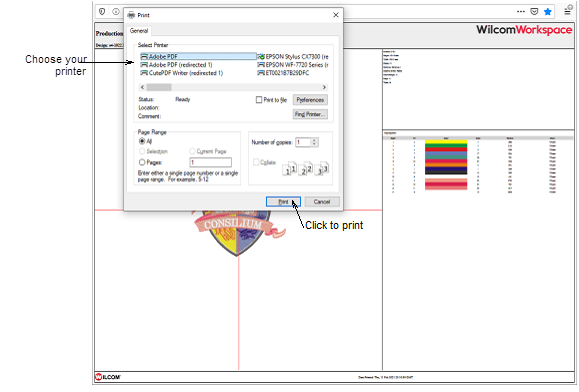

  5. Use the Print dialog to choose a printer – e.g. hard copy or PDF – and click Print to output.
