Truesizer

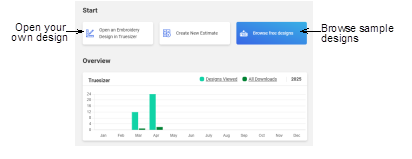

When you first access WilcomWorkspace, you are presented with the dashboard, or home page. From here you can access designs – either design or machine file – either your own or sample designs provided by the system. When trialing the system, make use of the sample designs.
The Truesizer app lets you preview and prepare embroidery files before stitching. Its simplicity makes it easy for even the most novice users. View, resize, recolor, print worksheets, and convert files for production.
In summary...
UI element | Purpose |
Workspace | This contains the main work area where you view and edit embroidery designs. |
General toolbar | This contains commonly used tools and commands which are specific to and only visible in Truesizer. See below. |
Workspace settings | This contains commands for viewing embroidery designs as well as overall workspace settings. See below. |
Toolbox | This contains design editing toolsets available in Truesizer. Each toolset has its own dedicated tab. See below. |
Rulers | Truesizer provides graduated rulers for more accurate digitizing. These make it possible to accurately position and size objects and whole designs. The unit of measurement – mm or inches – defaults to the regional settings in the Windows Control Panel. These, however, can be changed from within the application. |
General toolbar
This contains commonly used tools and commands specific to Truesizer.

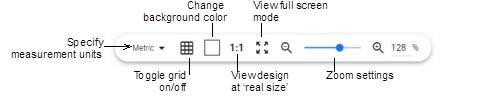

Workspace settings
This contains commands for viewing embroidery designs as well as overall workspace settings.

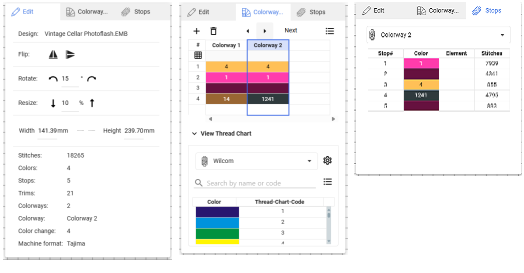

Toolbox
This Truesizer toolbox contains the design editing toolsets. Each has its own tab.
In summary...
Tab | Purpose |
Edit | Scale and transform (rotate / flip) embroidery designs. |
Colorways | Create multiple colorways for the same embroidery design using commercially available thread charts or your own custom charts. |
Stops | View thread information as well as named color blocks (elements). |
